Catalogo completo KST

ModelloDimensioni (mm)Peso (g)Coppia (Kg x cm)
Velocità (sec/60°)		Alimentazione (V)
Frequenza (us/Hz)		Prezzo
(€)		Prezzo
acquisto 4 pezzi
(€)
SERVI DIGITALI
HS08 A
23.5 x 8 x 25.25115.2Kg x cm@8.4V
4.5Kg x cm@6.0V
2.8Kg x cm@4.2V

0.11sec/60°@8.4V
0.13sec/60°@6.0V
0.21sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		46180
HS08 B
23.5 x 8 x 25.25115.2Kg x cm@8.4V
4.5Kg x cm@6.0V
2.8Kg x cm@4.2V

0.11sec/60°@8.4V
0.13sec/60°@6.0V
0.21sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		46180
X06
20 x 7 x 16.661.8Kg x cm@8.4V
1.5Kg x cm@6.0V
0.8Kg x cm@3.8V

0.07sec/60°@8.4V
0.08sec/60°@6.0V
0.12sec/60°@3.8V		3.8V-8.4V

1520us/333Hz
900us-2100us		36140
X08 V5.0


23.5 x 8 x 16.882.8Kg x cm@8.4V
2.2Kg x cm@6.0V
1.4Kg x cm@4.2V

0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		40155
X08H V5.0
23.5 x 8 x 16.682.8Kg x cm@8.4V
2.2Kg x cm@6.0V
1.4Kg x cm@4.2V

0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		40155
X08N V5.0
23.5 x 8 x 16.882.8Kg x cm@8.4V
2.2Kg x cm@6.0V
1.4Kg x cm@4.2V

0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		40155
X08 PLUS
23.5 x 8 x 16.895.3Kg x cm@8.4V
4.85Kg x cm@7.4V
3.85Kg x cm@6.0V
2.4Kg x cm@3.8V

0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		46180
X08H PLUS
23.5 x 8 x 16.895.3Kg x cm@8.4V
4.85Kg x cm@7.4V
3.85Kg x cm@6.0V
2.4Kg x cm@3.8V

0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@4.2V		3.8V-8.4V

1520us/333Hz
900us-2100us		46180
X10
30 x 10 x 35.52810.8Kg x cm@8.4V
9.5Kg x cm@7.4V
7.5Kg x cm@6.0V

0.10sec/60°@8.4V
0.12sec/60°@7.4V
0.14sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		43165
X10 - 710
30 x 10 x 30237.5Kg x cm@8.4V
6.8Kg x cm@7.4V
5.5Kg x cm@6.0V

0.09sec/60°@8.4V
0.11sec/60°@7.4V
0.13sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		42160
X10 mini
30 x 10 x 30237.5Kg x cm@8.4V
6.8Kg x cm@7.4V
5.5Kg x cm@6.0V

0.09sec/60°@8.4V
0.11sec/60°@7.4V
0.13sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		42160
X12-508
23 x 12 x 27.5206.2Kg x cm@8.4V
5.2Kg x cm@7.4V
4.2Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		37140
X15-908
35 x 15 x 32.5409.2Kg x cm@8.4V
8.0Kg x cm@7.4V
6.5Kg x cm@6.0V

0.08sec/60°@8.4V
0.09sec/60°@7.4V
0.10sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		65250
X15-1208
35.5 x 15 x 32.54013.5Kg x cm@8.4V
12Kg x cm@7.4V
9.8Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.10sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		77300
DS113MG
23.9 x 11.7 x 27.7122.2Kg x cm@6.0V
1.8Kg x cm@4.8V

0.11sec/60°@6.0V
0.14sec/60°@4.8V 		4.8V-6.0V

1520us/333Hz
800us-2200us		1450
DS125MG
30 x 10 x 35287Kg x cm@6.0V
6Kg x cm@4.8V

0.12sec/60°@6.0V
0.15sec/60°@4.8V 		4.8V-6.0V

1520us/333Hz
800us-2200us		33125
DS135MG
30 x 10 x 30235.2Kg x cm@6.0V
4.3Kg x cm@4.8V

0.12sec/60°@6.0V
0.15sec/60°@4.8V 		4.8V-6.0V

1520us/333Hz
800us-2200us		32120
DS145MG
30 x 10 x 30235.2Kg x cm@6.0V
4.3Kg x cm@4.8V

0.12sec/60°@6.0V
0.15sec/60°@4.8V 		4.8V-6.0V

1520us/333Hz
800us-2200us		32120
DS213MG
23 x 12 x 24.5163.0Kg x cm@6.0V
2.5Kg x cm@4.8V

0.07sec/60°@6.0V
0.08sec/60°@4.8V		4.8V-6.0V

1520us/330Hz
900us-2100us		30115
DS215MG V3.0
23 x 12 x 27.5203.7Kg x cm@7.4V
3.1Kg x cm@6.0V

0.05sec/60°@7.4V
0.06sec/60°@6.0V		6.0V-7.4V

1520us/330Hz
800us-2200us		32120
DS315MG
23 x 12 x 27.5204.8Kg x cm@8.4V
4.3Kg x cm@7.4V
3.5Kg x cm@6.0V
2.8Kg x cm@4.8V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V
0.1sec/60°@4.8V		4.8V-8.4V

1520us/330Hz
900us-2100us		32120
DS525MG
40.5 x 20 x 37687.5Kg x cm@8.4V
6.5Kg x cm@7.4V
5.5Kg x cm@6.0V

0.04sec/60°@8.4V
0.045sec/60°@7.4V
0.05sec/60°@6.0V		6.0V-8.4V

760us		53200
DS565X
35.5 x 15 x 32.7406.0Kg x cm@8.4V
5.0Kg x cm@7.4V
4.0Kg x cm@6.0V

0.04sec/60°@8.4V
0.05sec/60°@7.4V
0.06sec/60°@6.0V		6.0V-8.4V

760us/560Hz		58220
DS589MG
35.5 x 15 x 32.7408.0Kg x cm@7.4V
6.5Kg x cm@6.0V

0.09sec/60°@7.4V
0.1sec/60°@6.0V		6.0V-7.4V

1520us/330Hz
900us-2100us		57220
DS725MG
40.5 x 20 x 377018Kg x cm@8.4V
16Kg x cm@7.4V
13Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/330Hz
900us-2100us		58220
DS3509MG
40.5 x 21 x 387835Kg x cm@8.4V
32Kg x cm@7.4V
30Kg x cm@6.0V

0.12sec/60°@8.4V
0.13sec/60°@7.4V
0.14sec/60°@6.0V		6.0V-8.4V

1520us/330Hz
900us-2100us		75285
SERVI SENZA POTENZIOMETRO
MS320
Senza Potenziometro
23 x 12 x 27.5215.5Kg x cm@7.4V
4.5Kg x cm@6.0V

0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V37140
MS325
Senza Potenziometro
23 x 12 x 27.5206.5Kg x cm@8.4V
5.5Kg x cm@7.4V
4.2Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		45170
MS565
Senza Potenziometro
35.5 x 15 x 32.5386.5Kg x cm@8.4V
5.5Kg x cm@7.4V
4.2Kg x cm@6.0V

0.035sec/60°@8.4V
0.04sec/60°@7.4V
0.05sec/60°@6.0V		6.0V-8.4V

760us/560Hz		70270
MS589
Senza Potenziometro
35.5 x 15 x 32.5389.2Kg x cm@8.4V
8.0Kg x cm@7.4V
6.5Kg x cm@6.0V

0.035sec/60°@8.4V
0.04sec/60°@7.4V
0.05sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		70270
MS665
Senza Potenziometro
40.5 x 20 x 38697.5Kg x cm@8.4V
6.8Kg x cm@7.4V
5.8Kg x cm@6.0V

0.04sec/60°@8.4V
0.045sec/60°@7.4V
0.05sec/60°@6.0V		6.0V-8.4V

760us/560Hz		70270
MS725
Senza Potenziometro
40.5 x 20 x 386720Kg x cm@8.4V
18Kg x cm@7.4V
15Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		75290
MS805
Senza Potenziometro
40.5 x 20 x 38698.2Kg x cm@8.4V
7.5Kg x cm@7.4V
6.5Kg x cm@6.0V

0.035sec/60°@8.4V
0.04sec/60°@7.4V
0.045sec/60°@6.0V		6.0V-8.4V

760us/560Hz		83320
MS815
Senza Potenziometro
40.5 x 20 x 386920Kg x cm@8.4V
18Kg x cm@7.4V
15Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		83320
MS825
Senza Potenziometro
40.5 x 20 x 387435Kg x cm@8.4V
30Kg x cm@7.4V
25Kg x cm@6.0V

0.11sec/60°@8.4V
0.13sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		83320
MS1035
Senza Potenziometro
40.5 x 20 x 386812Kg x cm@8.4V
10.5Kg x cm@7.4V
8.5Kg x cm@6.0V

0.03sec/60°@8.4V
0.035sec/60°@7.4V
0.04sec/60°@6.0V		6.0V-8.4V

760us/560Hz		140540
MS2208
Senza Potenziometro
40.5 x 20 x 387225Kg x cm@8.4V
22Kg x cm@7.4V
18Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/330Hz		140540
MS3012
Senza Potenziometro
40.5 x 20 x 387235Kg x cm@8.4V
30Kg x cm@7.4V
25Kg x cm@6.0V

0.11sec/60°@8.4V
0.12sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V

1520us/330Hz		145560
MS3509
Senza Potenziometro
Fino a +/- 100° di corsa
40.5 x 21 x 38.57832Kg x cm@7.4V
28Kg x cm@6.0V

0.14sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V75290
MS4512
Senza Potenziometro
40.5 x 21 x 428145Kg x cm@8.4V
42Kg x cm@7.4V
38Kg x cm@6.0V

0.14sec/60°@8.4V
0.16sec/60°@7.4V
0.18sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		87330
SERVI BRUSHLESS
BLS505
35.5 x 15 x 32.70407Kg x cm@8.4V
6.2Kg x cm@7.4V
5Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/330Hz
900us-2100us		77290
BLS505x
35.5 x 15 x 32.70405.5Kg x cm@8.4V
4.8Kg x cm@7.4V
3.8Kg x cm@6.0V

0.035sec/60°@8.4V
0.04sec/60°@7.4V
0.05sec/60°@6.0V		6.0V-8.4V

760us/560Hz		77290
BLS805X
40.5 x 20 x 37707.5Kg x cm@8.4V
6.5Kg x cm@7.4V
5.5Kg x cm@6.0V

0.039sec/60°@8.4V
0.042sec/60°@7.4V
0.048sec/60°@6.0V		6.0V-8.4V

760us/560Hz		53200
BLS815
40.5 x 20 x 39.57020Kg x cm@8.4V
17Kg x cm@7.4V
14Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		53200
BLS825
40.5 x 20 x 377035Kg x cm@8.4V
30Kg x cm@7.4V
25Kg x cm@6.0V

0.11sec/60°@8.4V
0.13sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V

1520us/333Hz		58220
BLS905X
40.5 x 20 x 37728Kg x cm@8.4V
7Kg x cm@7.4V
6Kg x cm@6.0V

0.035sec/60°@8.4V
0.04sec/60°@7.4V
0.045sec/60°@6.0V		6.0V-8.4V

760us/560Hz		67250
BLS915
40.5 x 20 x 377221Kg x cm@8.4V
18Kg x cm@7.4V
16Kg x cm@6.0V

0.069sec/60°@8.4V
0.075sec/60°@7.4V
0.08sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		67250
SERVI DA AUTO
BLS159
Brushless
40.5 x 20 x 25.45510.0Kg x cm@6.0V
8.0Kg x cm@4.8V

0.09sec/60°@6.0V
0.10sec/60°@6.0V		4.8V-6.0V

1520us/333Hz
900us-2100us		73280
BLS259
Brushless
40.5 x 21 x 387016Kg x cm@6.0V
12Kg x cm@4.8V

0.09sec/60°@6.0V
0.10sec/60°@6.0V		4.8V-6.0V

1520us/333Hz
900us-2100us		77300
BLS359
Brushless
40.5 x 21 x 387030Kg x cm@8.4V
25Kg x cm@7.4V
20Kg x cm@6.0V

0.10sec/60°@8.4V
0.12sec/60°@7.4V
0.14sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		78300
BLS359WP
Brushless - Impermeabile
40.5 x 21 x 41.68428Kg x cm@8.4V
22Kg x cm@7.4V
18Kg x cm@6.0V

0.10sec/60°@8.4V
0.12sec/60°@7.4V
0.14sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		88340
BLS651
Brushless
40.5 x 20 x 27.54413Kg x cm@8.4V
11Kg x cm@7.4V
9.0Kg x cm@6.0V

0.08sec/60°@8.4V
0.09sec/60°@7.4V
0.1sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		43160
BLS661WP V2.0
Brushless - Impermeabile
40.5 x 21 x 40.54419Kg x cm@8.4V
16Kg x cm@7.4V
12Kg x cm@6.0V

0.10sec/60°@8.4V
0.11sec/60°@7.4V
0.12sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		49190
BLS662WP V2.0
Brushless - Impermeabile
40.5 x 21 x 40.56425Kg x cm@8.4V
20Kg x cm@7.4V
15Kg x cm@6.0V

0.11sec/60°@8.4V
0.13sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		55210
DS1509MG
40.5 x 20 x 25.45512.8Kg x cm@7.4V
10.7Kg x cm@6.0V
8.5Kg x cm@4.8V

0.07sec/60°@7.4V
0.08sec/60°@6.0V
0.10sec/60°@4.8V		4.8V-7.4V

1520us/333Hz
900us-2100us		58220
DS2509MG
40.5 x 21.1 x 387828Kg x cm@8.4V
25Kg x cm@7.4V
21Kg x cm@6.0V

0.10sec/60°@8.4V
0.11sec/60°@7.4V
0.12sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		77300
SERIE X-20
X20-8.4-50
40.5 x 21 x 427845Kg x cm@8.4V
42Kg x cm@7.4V
38Kg x cm@6.0V

0.15sec/60°@8.4V
0.17sec/60°@7.4V
0.20sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
900us-2100us		77300
X20-1035
Brushless
40.5 x 20 x 387212Kg x cm@8.4V
10Kg x cm@7.4V
8.5Kg x cm@6.0V

0.03sec/60°@8.4V
0.035sec/60°@7.4V
0.04sec/60°@6.0V		6.0V-8.4V

760us/560Hz
132500
X20-2208
Brushless
40.5 x 20 x 387225Kg x cm@8.4V
22Kg x cm@7.4V
18Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
130490
X20-3012
Brushless
40.5 x 20 x 387535Kg x cm@8.4V
30Kg x cm@7.4V
25Kg x cm@6.0V

0.11sec/60°@8.4V
0.12sec/60°@7.4V
0.15sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
127480
X20-9650
Brushless
40.5 x 20 x 387020Kg x cm@8.4V
18Kg x cm@7.4V
16Kg x cm@6.0V

0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V		6.0V-8.4V

1520us/333Hz
122470
X25-8.4-50
68.5 x 30 x 6328065Kg x cm@8.4V
58Kg x cm@7.4V
48Kg x cm@6.0V

0.18sec/60°@8.4V
0.20sec/60°@7.4V
0.24sec/60°@6.0V		6.0V-8.4V
210780
SERVI GIGANTI

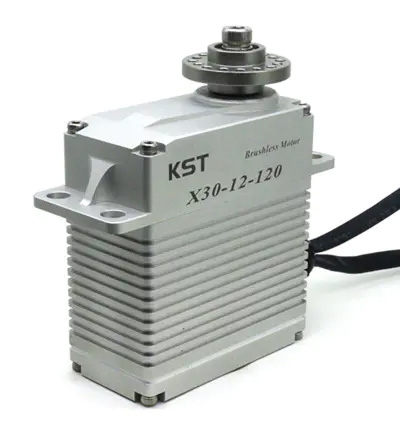

X30-12-120
Brushless
64 x 33 x 70480120Kg x cm@12V
80Kg x cm@8.4V

0.12sec/60°@12V
0.15sec/60°@8.4V 		8.4V-12V

1520us/333Hz
5122000

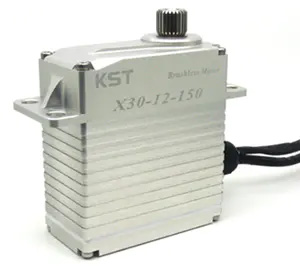

X30-12-150
Brushless
64 x 33 x 73.6360150Kg x cm@12V
105Kg x cm@8.4V

0.13sec/60°@12V
0.18sec/60°@8.4V 		8.4V-12V

1520us/333Hz
6402400

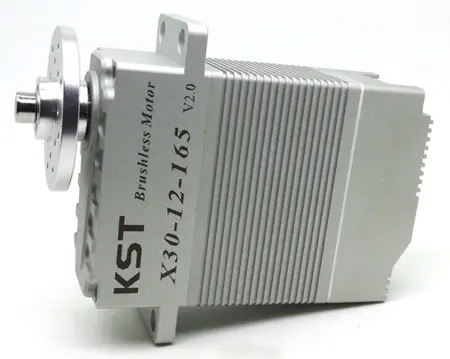

X30-12-165
Brushless
70 x 33 x 77.6445165Kg x cm@12V
115Kg x cm@8.4V

0.16sec/60°@12V
0.20sec/60°@8.4V 		8.4V-12V

1520us/333Hz
6752500
