In questa pagina troverete riportati una selezione di servocomandi che in base alla nostra esperienza raccomandiamo per l’utilizzo sui nostri prodotti e più in generale su tutte le tipologie di alianti.
| Modello | Dimensioni (mm) | Peso (g) | Coppia (Kg x cm) Velocità (sec/60°) | Alimentazione (V) Frequenza (us/Hz) | Prezzo (€) | Prezzo acquisto 4 pezzi (€) |
|---|---|---|---|---|---|---|
HS08 A | 23.5 x 8 x 25.25 | 11 | 5.2Kg x cm@8.4V 4.5Kg x cm@6.0V 2.8Kg x cm@4.2V 0.11sec/60°@8.4V 0.13sec/60°@6.0V 0.21sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 53 | 206 |
HS08 B | 23.5 x 8 x 25.25 | 11 | 5.2Kg x cm@8.4V 4.5Kg x cm@6.0V 2.8Kg x cm@4.2V 0.11sec/60°@8.4V 0.13sec/60°@6.0V 0.21sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 53 | 206 |
X08 V6.0 | 23.5 x 8 x 16.8 | 8 | 2.8Kg x cm@8.4V 2.2Kg x cm@6.0V 1.4Kg x cm@4.2V 0.09sec/60°@8.4V 0.15sec/60°@6.0V 0.18sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
X08H V6.0 | 23.5 x 8 x 16.6 | 8 | 2.8Kg x cm@8.4V 2.2Kg x cm@6.0V 1.4Kg x cm@4.2V 0.09sec/60°@8.4V 0.15sec/60°@6.0V 0.18sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
X08N V6.0 | 23.5 x 8 x 16.8 | 8 | 2.8Kg x cm@8.4V 2.2Kg x cm@6.0V 1.4Kg x cm@4.2V 0.09sec/60°@8.4V 0.15sec/60°@6.0V 0.18sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
X08 PLUS | 23.5 x 8 x 16.8 | 9 | 5.3Kg x cm@8.4V 4.85Kg x cm@7.4V 3.85Kg x cm@6.0V 2.4Kg x cm@3.8V 0.09sec/60°@8.4V 0.15sec/60°@6.0V 0.18sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 42 | 163 |

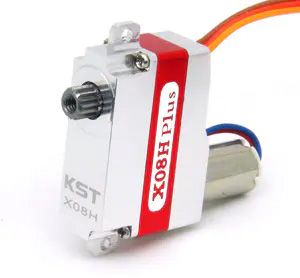

X08H PLUS | 23.5 x 8 x 16.8 | 9 | 5.3Kg x cm@8.4V 4.85Kg x cm@7.4V 3.85Kg x cm@6.0V 2.4Kg x cm@3.8V 0.09sec/60°@8.4V 0.15sec/60°@6.0V 0.18sec/60°@4.2V | 3.8V-8.4V 1520us/333Hz 900us-2100us | 42 | 163 |
X10  | 30 x 10 x 35.5 | 28 | 10.8Kg x cm@8.4V 9.5Kg x cm@7.4V 7.5Kg x cm@6.0V 0.10sec/60°@8.4V 0.12sec/60°@7.4V 0.14sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
X10 - 710 | 30 x 10 x 30 | 23 | 7.5Kg x cm@8.4V 6.8Kg x cm@7.4V 5.5Kg x cm@6.0V 0.09sec/60°@8.4V 0.11sec/60°@7.4V 0.13sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
X10 mini | 30 x 10 x 30 | 23 | 7.5Kg x cm@8.4V 6.8Kg x cm@7.4V 5.5Kg x cm@6.0V 0.09sec/60°@8.4V 0.11sec/60°@7.4V 0.13sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz 900us-2100us | 45 | 175 |
DS113MG | 23.9 x 11.7 x 27.7 | 12 | 2.2Kg x cm@6.0V 1.8Kg x cm@4.8V 0.11sec/60°@6.0V 0.14sec/60°@4.8V | 4.8V-6.0V 1520us/333Hz 800us-2200us | 15 | 58 |
DS125MG | 30 x 10 x 35 | 28 | 7Kg x cm@6.0V 6Kg x cm@4.8V 0.12sec/60°@6.0V 0.15sec/60°@4.8V | 4.8V-6.0V 1520us/333Hz 800us-2200us | 37 | 144 |
DS135MG | 30 x 10 x 30 | 23 | 5.2Kg x cm@6.0V 4.3Kg x cm@4.8V 0.12sec/60°@6.0V 0.15sec/60°@4.8V | 4.8V-6.0V 1520us/333Hz 800us-2200us | 37 | 144 |
DS145MG | 30 x 10 x 30 | 23 | 5.2Kg x cm@6.0V 4.3Kg x cm@4.8V 0.12sec/60°@6.0V 0.15sec/60°@4.8V | 4.8V-6.0V 1520us/333Hz 800us-2200us | 37 | 144 |
DS215MG V3.0 | 23 x 12 x 27.5 | 20 | 3.7Kg x cm@7.4V 3.1Kg x cm@6.0V 0.05sec/60°@7.4V 0.06sec/60°@6.0V | 6.0V-7.4V 1520us/330Hz 800us-2200us | 37 | 144 |
DS315MG | 23 x 12 x 27.5 | 20 | 4.8Kg x cm@8.4V 4.3Kg x cm@7.4V 3.5Kg x cm@6.0V 2.8Kg x cm@4.8V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V 0.1sec/60°@4.8V | 4.8V-8.4V 1520us/330Hz 900us-2100us | 37 | 144 |
DS213MG | 23 x 12 x 24.5 | 16 | 3.0Kg x cm@6.0V 2.5Kg x cm@4.8V 0.07sec/60°@6.0V 0.08sec/60°@4.8V | 4.8V-6.0V 1520us/330Hz 900us-2100us | 37 | 144 |
DS725MG | 40.5 x 20 x 37 | 70 | 18Kg x cm@8.4V 16Kg x cm@7.4V 13Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 900us-2100us | 69 | 268 |
| MS325 Senza Potenziometro  | 23 x 12 x 27.5 | 20 | 6.5Kg x cm@8.4V 5.5Kg x cm@7.4V 4.2Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 53 | 206 |
