In questa sezione abbiamo raggruppato il catalogo KST relativo ai servi per Elicotteri e quelli a coppia elevata ideali per Maxi e riproduzioni di grandi dimensioni.
| Modello | Dimensioni (mm) | Peso (g) | Coppia (Kg x cm) Velocità (sec/60°) | Alimentazione (V) Frequenza (us/Hz) | Prezzo (€) | Prezzo acquisto 4 pezzi (€) |
|---|---|---|---|---|---|---|
| SERVI SENZA POTENZIOMETRO | ||||||
| MS235 Senza Potenziometro | 30 x 10 x 30 | 24 | 6.5Kg x cm@7.4V 5.5Kg x cm@6.0V 0.12sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-7.4V 1520us/333Hz | 45 | 165 |
| MS245 Senza Potenziometro | 30 x 10 x 35 | 24 | 6.5Kg x cm@7.4V 5.5Kg x cm@6.0V 0.11sec/60°@7.4V 0.12sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 45 | 165 |
| MS320 Senza Potenziometro Fino a +/- 100° di corsa  | 23 x 12 x 27.5 | 21 | 5.5Kg x cm@7.4V 4.5Kg x cm@6.0V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V | 37 | 140 |
| MS325 Senza Potenziometro  | 23 x 12 x 27.5 | 20 | 6.5Kg x cm@8.4V 5.5Kg x cm@7.4V 4.2Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 45 | 170 |
| MS565 Senza Potenziometro  | 35.5 x 15 x 32.5 | 38 | 6.5Kg x cm@8.4V 5.5Kg x cm@7.4V 4.2Kg x cm@6.0V 0.035sec/60°@8.4V 0.04sec/60°@7.4V 0.05sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 70 | 270 |
| MS589 Senza Potenziometro  | 35.5 x 15 x 32.5 | 38 | 9.2Kg x cm@8.4V 8.0Kg x cm@7.4V 6.5Kg x cm@6.0V 0.035sec/60°@8.4V 0.04sec/60°@7.4V 0.05sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 70 | 270 |
| MS665 Senza Potenziometro  | 40.5 x 20 x 38 | 69 | 7.5Kg x cm@8.4V 6.8Kg x cm@7.4V 5.8Kg x cm@6.0V 0.04sec/60°@8.4V 0.045sec/60°@7.4V 0.05sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 70 | 270 |
| MS725 Senza Potenziometro  | 40.5 x 20 x 38 | 67 | 20Kg x cm@8.4V 18Kg x cm@7.4V 15Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 70 | 270 |
| MS805 Senza Potenziometro  | 40.5 x 20 x 38 | 69 | 8.2Kg x cm@8.4V 7.5Kg x cm@7.4V 6.5Kg x cm@6.0V 0.035sec/60°@8.4V 0.04sec/60°@7.4V 0.045sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 83 | 320 |
| MS815 Senza Potenziometro  | 40.5 x 20 x 38 | 69 | 20Kg x cm@8.4V 18Kg x cm@7.4V 15Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 83 | 320 |
| MS825 Senza Potenziometro  | 40.5 x 20 x 38 | 74 | 35Kg x cm@8.4V 30Kg x cm@7.4V 25Kg x cm@6.0V 0.11sec/60°@8.4V 0.13sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 83 | 320 |
| MS1035 Senza Potenziometro  | 40.5 x 20 x 38 | 68 | 12Kg x cm@8.4V 10.5Kg x cm@7.4V 8.5Kg x cm@6.0V 0.03sec/60°@8.4V 0.035sec/60°@7.4V 0.04sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 135 | 520 |
| MS2208 Senza Potenziometro | 40.5 x 20 x 38 | 72 | 25Kg x cm@8.4V 22Kg x cm@7.4V 18Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz | 135 | 520 |
| MS3012 Senza Potenziometro  | 40.5 x 20 x 38 | 72 | 35Kg x cm@8.4V 30Kg x cm@7.4V 25Kg x cm@6.0V 0.11sec/60°@8.4V 0.12sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz | 140 | 540 |
| MS3509 Senza Potenziometro Fino a +/- 100° di corsa  | 40.5 x 21 x 38.5 | 78 | 32Kg x cm@7.4V 28Kg x cm@6.0V 0.14sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V | 75 | 290 |
| MS4512 Senza Potenziometro | 40.5 x 21 x 42 | 81 | 45Kg x cm@8.4V 42Kg x cm@7.4V 38Kg x cm@6.0V 0.14sec/60°@8.4V 0.16sec/60°@7.4V 0.18sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 87 | 330 |
| MR320 Senza Potenziometro Fino a +/- 180° di corsa | 40.5 x 21 x 38.5 | 21 | 5.5Kg x cm@7.4V 4.5Kg x cm@6.0V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V | 37 | 140 |
| MR3509 Senza Potenziometro Fino a +/- 180° di corsa | 40.5 x 21 x 38.5 | 78 | 32Kg x cm@7.4V 28Kg x cm@6.0V 0.14sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V | 83 | 320 |
| SERVI DIGITALI | ||||||
DS213MG | 23 x 12 x 24.5 | 16 | 3.0Kg x cm@6.0V 2.5Kg x cm@4.8V 0.07sec/60°@6.0V 0.08sec/60°@4.8V | 4.8V-6.0V 1520us/330Hz 900us-2100us | 30 | 115 |
| DS313MG | 23 x 12 x 27.5 | 20 | 3.5Kg x cm@6.0V 2.8Kg x cm@4.8V 0.08sec/60°@6.0V 0.09sec/60°@4.8V | 4.8V-6.0V 1520us/330Hz 900us-2100us | 30 | 115 |
DS115MG | 23 x 12 x 27.5 | 20 | 3.0Kg x cm@7.4V 2.4Kg x cm@6.0V 0.06sec/60°@7.4V 0.07sec/60°@6.0V | 4.8V-6.0V 1520us/330Hz 800us-2200us | 26 | 100 |
| DS215MG V3.0 | 23 x 12 x 27.5 | 20 | 3.7Kg x cm@7.4V 3.1Kg x cm@6.0V 0.05sec/60°@7.4V 0.06sec/60°@6.0V | 6.0V-7.4V 1520us/330Hz 800us-2200us | 32 | 120 |
| DS315MG | 23 x 12 x 27.5 | 20 | 4.8Kg x cm@8.4V 4.3Kg x cm@7.4V 3.5Kg x cm@6.0V 2.8Kg x cm@4.8V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V 0.1sec/60°@4.8V | 4.8V-8.4V 1520us/330Hz 900us-2100us | 32 | 120 |
DS515MG | 35.5 x 15 x 29.5 | 35 | 6.5Kg x cm@8.4V 5.5Kg x cm@7.4V 4.6Kg x cm@6.0V 0.05sec/60°@8.4V 0.06sec/60°@7.4V 0.07sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 800us-2200us | 45 | 165 |
DS525MG | 40.5 x 20 x 37 | 68 | 7.5Kg x cm@8.4V 6.5Kg x cm@7.4V 5.5Kg x cm@6.0V 0.04sec/60°@8.4V 0.045sec/60°@7.4V 0.05sec/60°@6.0V | 6.0V-8.4V 760us | 53 | 200 |
DS565X | 35.5 x 15 x 32.7 | 40 | 6.0Kg x cm@8.4V 5.0Kg x cm@7.4V 4.0Kg x cm@6.0V 0.04sec/60°@8.4V 0.05sec/60°@7.4V 0.06sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 58 | 220 |
DS589MG | 35.5 x 15 x 32.7 | 40 | 8.0Kg x cm@7.4V 6.5Kg x cm@6.0V 0.09sec/60°@7.4V 0.1sec/60°@6.0V | 6.0V-7.4V 1520us/330Hz 900us-2100us | 57 | 220 |
DS715MG | 39.5 x 20 x 40.5 | 74 | 19Kg x cm@8.4V 16Kg x cm@7.4V 13Kg x cm@6.0V 0.05sec/60°@8.4V 0.06sec/60°@7.4V 0.072sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 900us-2100us | 74 | 270 |
DS725MG | 40.5 x 20 x 37 | 70 | 18Kg x cm@8.4V 16Kg x cm@7.4V 13Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 900us-2100us | 48 | 180 |
DS3509MG | 40.5 x 21 x 38 | 78 | 35Kg x cm@8.4V 32Kg x cm@7.4V 30Kg x cm@6.0V 0.12sec/60°@8.4V 0.13sec/60°@7.4V 0.14sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 900us-2100us | 75 | 285 |
| SERVI BRUSHLESS | ||||||
BLS505 | 35.5 x 15 x 32.70 | 40 | 7Kg x cm@8.4V 6.2Kg x cm@7.4V 5Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/330Hz 900us-2100us | 77 | 290 |
BLS505x | 35.5 x 15 x 32.70 | 40 | 5.5Kg x cm@8.4V 4.8Kg x cm@7.4V 3.8Kg x cm@6.0V 0.035sec/60°@8.4V 0.04sec/60°@7.4V 0.05sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 77 | 290 |
BLS805X | 40.5 x 20 x 37 | 70 | 7.5Kg x cm@8.4V 6.5Kg x cm@7.4V 5.5Kg x cm@6.0V 0.039sec/60°@8.4V 0.042sec/60°@7.4V 0.048sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 53 | 200 |
BLS815 | 40.5 x 20 x 39.5 | 70 | 20Kg x cm@8.4V 17Kg x cm@7.4V 14Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 53 | 200 |
BLS825 | 40.5 x 20 x 37 | 70 | 35Kg x cm@8.4V 30Kg x cm@7.4V 25Kg x cm@6.0V 0.11sec/60°@8.4V 0.13sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 58 | 220 |
BLS905X | 40.5 x 20 x 37 | 72 | 8Kg x cm@8.4V 7Kg x cm@7.4V 6Kg x cm@6.0V 0.035sec/60°@8.4V 0.04sec/60°@7.4V 0.045sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 67 | 250 |
BLS915 | 40.5 x 20 x 37 | 72 | 21Kg x cm@8.4V 18Kg x cm@7.4V 16Kg x cm@6.0V 0.069sec/60°@8.4V 0.075sec/60°@7.4V 0.08sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz 900us-2100us | 67 | 250 |
| SERIE X-20 | ||||||
X20-8.4-50 | 40.5 x 21 x 42 | 78 | 45Kg x cm@8.4V 42Kg x cm@7.4V 38Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz 900us-2100us | 77 | 300 |
| X20-1035 Brushless  | 40.5 x 20 x 38 | 72 | 12Kg x cm@8.4V 10Kg x cm@7.4V 8.5Kg x cm@6.0V 0.03sec/60°@8.4V 0.035sec/60°@7.4V 0.04sec/60°@6.0V | 6.0V-8.4V 760us/560Hz | 132 | 500 |

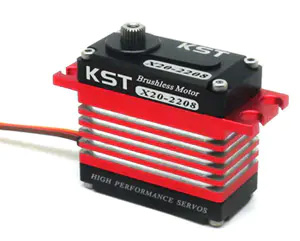

| X20-2208 Brushless  | 40.5 x 20 x 38 | 72 | 25Kg x cm@8.4V 22Kg x cm@7.4V 18Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 130 | 490 |
| X20-3012 Brushless  | 40.5 x 20 x 38 | 75 | 35Kg x cm@8.4V 30Kg x cm@7.4V 25Kg x cm@6.0V 0.11sec/60°@8.4V 0.12sec/60°@7.4V 0.15sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 127 | 480 |

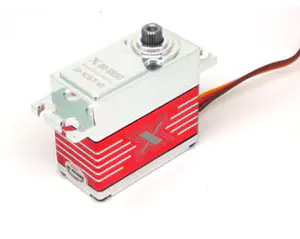

| X20-9650 Brushless  | 40.5 x 20 x 38 | 70 | 20Kg x cm@8.4V 18Kg x cm@7.4V 16Kg x cm@6.0V 0.07sec/60°@8.4V 0.08sec/60°@7.4V 0.09sec/60°@6.0V | 6.0V-8.4V 1520us/333Hz | 122 | 470 |

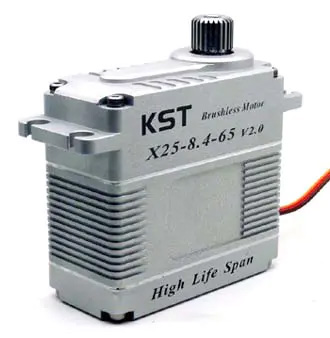

X25-8.4-50 | 68.5 x 30 x 63 | 280 | 65Kg x cm@8.4V 58Kg x cm@7.4V 48Kg x cm@6.0V 0.18sec/60°@8.4V 0.20sec/60°@7.4V 0.24sec/60°@6.0V | 6.0V-8.4V | 210 | 780 |
